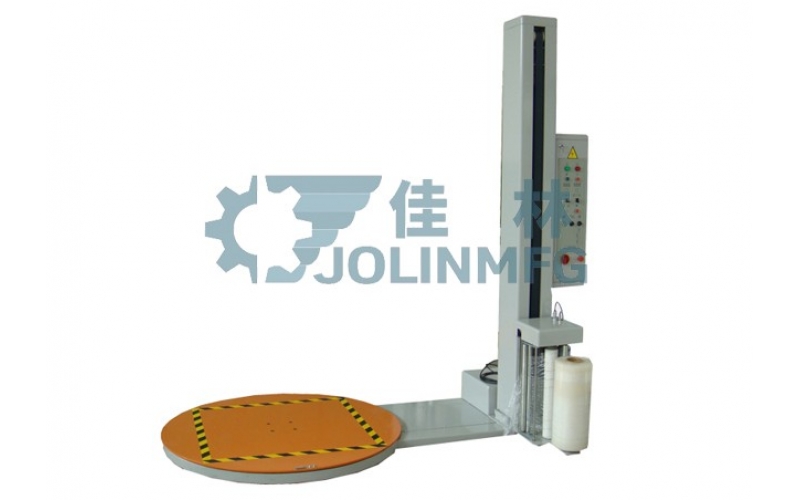

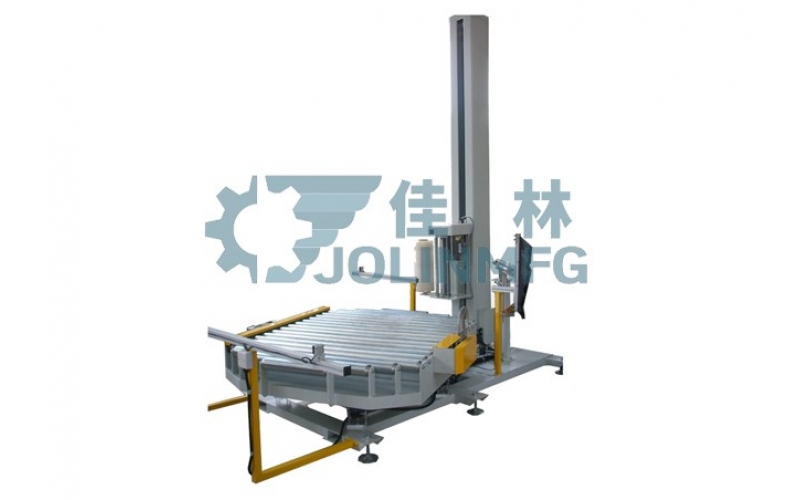

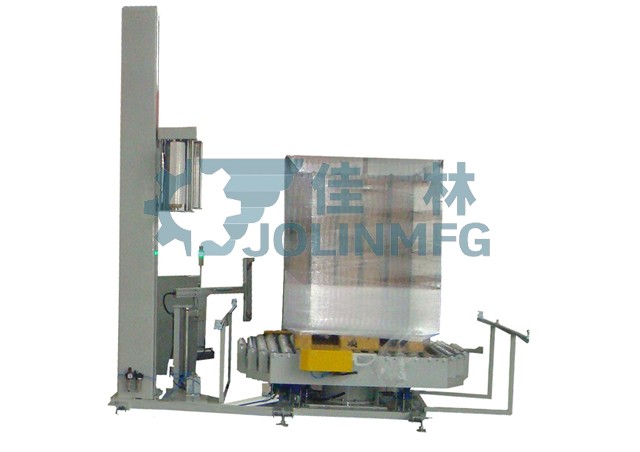

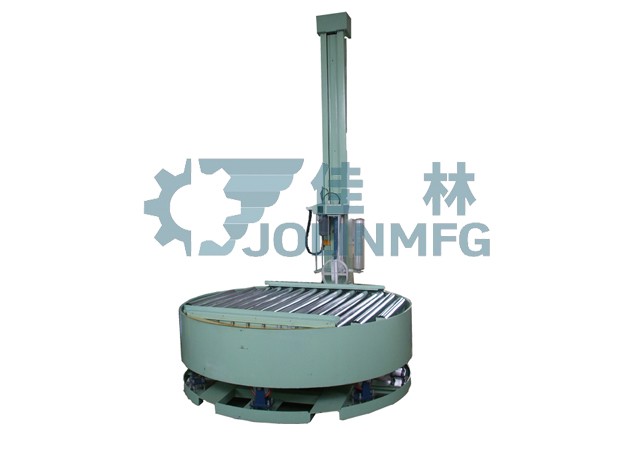

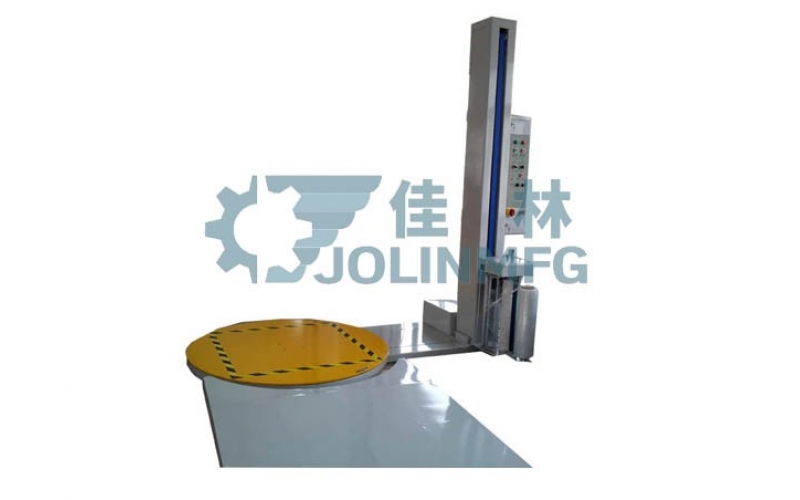

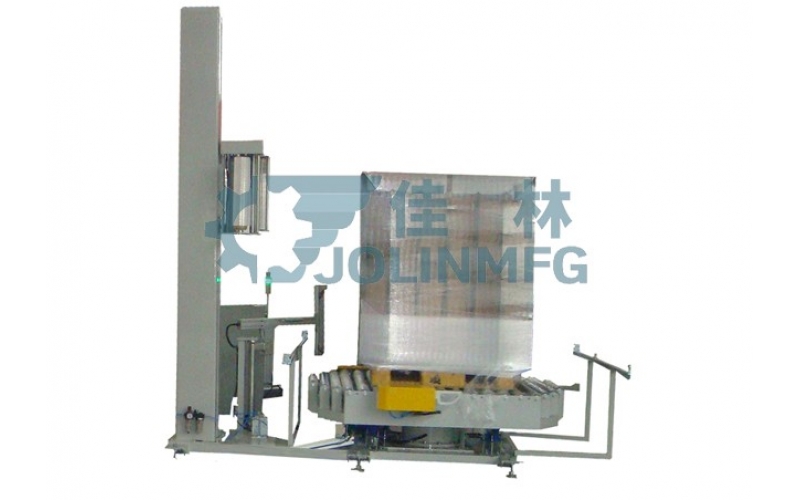

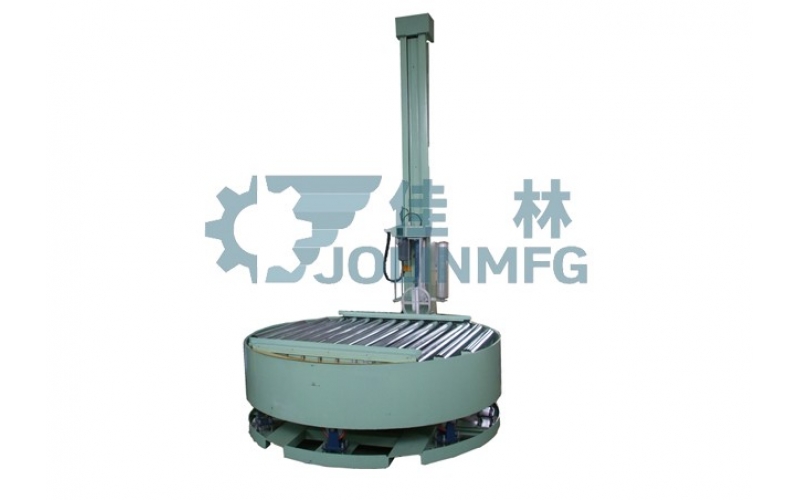

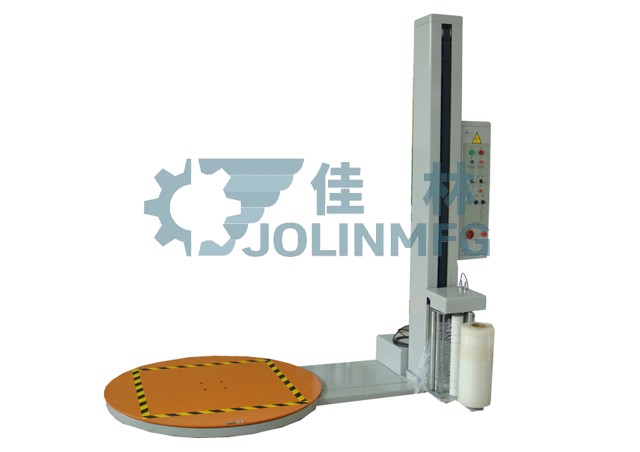

    Automatic Online Pallet Wrapping Machine

    Features:Tension: 0~250%/atrophy < 5 %Pre-stretch: Tension range 0-250% to save film material.No limit speed shift: Soft start and stop to prevent product from droppingPartial strengthen: Switch pa

    Detailed

    Features:

    Tension: 0~250%/atrophy < 5 %

    Pre-stretch: Tension range 0-250% to save film material.

    No limit speed shift: Soft start and stop to prevent product from dropping

    Partial strengthen: Switch packing design to make fastest packing speed for different products

    Turntable orientation: Turntable positions automatically to ensure positioning accuracy

    Self-protection switch: When plant is in abnormity, the film carriage reach the top or bottom to protect from collision.

    Photocell device: The height of packing product is detected by sensor to track best packing  height for each product.

    Tension control: A mechanical flexible braking is applied for film tension control to get  perfect protection for product.

    Break film automatically: Break film automatically to save time after finish packing(Weight should exceed 250KGS)

    Special design

    Ⅰ.12 rollers to be 2 group in certain angle to uphold steadily and run smoothly.Special design

    Ⅱ.Adopt mighty belt in replacement of chain for conveying to reduce noise and eliminate potential  trouble caused by chain‘s break, patent buckle design ensure safety of film carriage.

    Ⅲ.Traditional hatch is ahead and easy trip by touch, and the weight is always in the back,so we make the hatch in the back convenient for moving.

    Ⅳ.Chassis is in  integrative ”U” model and close to the turntable ,So the equipment willnot be damaged because of the film jammed in the turntable.

    Ⅴ.Integrative arch design for pillar perfect the design and facility enfolding design makepersonal installation come true and make it safe to move and install.

    Ⅵ.Electric parts are original imported and equipped with aero socket, easy for maintenance.

    Ⅶ.Optional mechanical and electromagnetic film carriage、remote-control device、pulley ramp available.

    Specification

    Model No.

    JT-2000

    Turntable diameter

    1500mm/1800mm

    Max.wrapping height

    2100mm/2400mm

    Max.wrapping area

    1300×1300mm

    Max.wrapping weight

    2000Kges

    Turntable speed

    2-15

    Film elevation speed

    0-3m/min

    Film width

    20〝

    Motor

    Turntable 1HP  Elevator 1/2HP

    Machine dimensions

    2650×1500×2450mm

    Weight

    500Kg

    Film tension control

    Pre-stretch tension control
